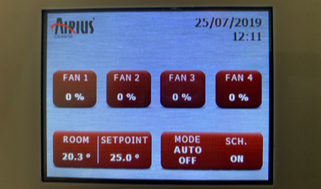

Airius Touch Screen Controller

Introducing a new level of precise comfort control and monitoring to suit your requirements.

The Airius Touch Screen Controller is a programmable room controller with PIN-code access. It is ideal for managing one to 30 or more Airius EC fans per fan group, subject to fan size, with each fan group individually controlled by one of the four or eight fan control groups on the selected screen.

The Airius Touch Screen Controller uses the 0–10V analogue signal from the fan to enable a range of important control options. These include programmed temperature control set points, allowing fans to turn on or off once preset room temperatures are met.

The fans can also be programmed, via preset temperature or humidity settings on selected versions, to increase or decrease speed between user-programmed speed parameters for each fan group.

Adding something more to your comfort

Introducing A New Level Of Precise Comfort Control
The touch screen controller has flexible customisation options available, with two screen border types available in either black or white. The controller works with an Airius-supplied interface, enabling just the screen to be seen.
Simple time scheduling allows fans to run during pre-programmed daily schedules, with the option to turn scheduling on and off. There is also the ability to program room temperatures and fan speeds to optimise cooling effect and comfort.

An integrated and external temperature sensor are also included as standard for destratification applications. The Delta T between floor and ceiling temperatures can be programmed, along with fan speeds, to suit the required programme.

Once set, the fans can be programmed to increase or decrease speed to suit preset thermal comfort and performance parameters.

The Airius Touch Screen Controller provides fan speed control from 0–100% in 10% increments. A full range of Auto, Manual, Manual Full-Speed and Auto Off functions are available for the user to program and utilise.

The unit has no onboard inputs or outputs, but the controller can connect to a range of external inputs and outputs due to multiple communication ports and protocols, including Modbus and RS485 high-level interface capability. The Airius Touch Screen Controller offers a 65K multi-colour, 320 x 240 pixel resolution screen, as well as a resistive touch screen with audio acknowledgement.
The touch screen controller is easy to install and program, with extremely low power consumption. The 3.5-inch resistive touch-screen unit can be mounted on a wall for easy access, with surface or recessed mounting available.

Request the technical datasheet

For further technical information, contact Airius to request a copy of the Airius Touch Screen Controller datasheet.
